2T

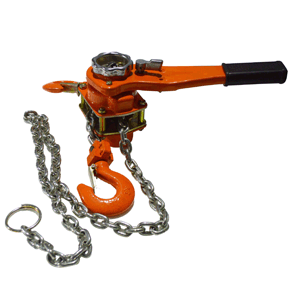

Lever Chain Block |
| ĄĄ This chain block
is a portable lifting device easily operated by hand. It is suitable for
using in factories, agricultural production, and in wharfs, docks and
storages for fixing machines, lifting cargos, and loading and unloading
goods. It is especially advantageous for lifting work in the power
supply is not available.
The chain block can be attached to a
trolley of any type as a travelling chain block. It is suitable to
monorail overhead conveying system, hand traveling crane and jib crane.
ĄĄ
|
  |
| ĄĄ
Feature: |
| High Quality, good
performance |
 |
| Whole steel plate is
pressed gear, high efficiency |
| High quality assemble
tech, small contact |
| Reasonable design
|
|
Specification: |
|
Capacity |
2T |
|
Standard lift |
3M |
|
Running test load |
3T |
|
Min. distance between
clasps |
444MM |
|
Chain pull to lift full load |
314N |
|
Number of load chain fall lines |
2 |
|
Diameter of load chain |
6MM |
|
Package weight |
19kg |
| For
safe operation must keep rules as follow: |
     |
     |
| 1.Don't use two or more
hoists to lift one weight |
6.No twisting. |
| 2.Don't lift any load
exceeding the rated capacity of the chain block |
7.Don't use when the chain
is kinking |
| 3.Don't hang anything on
the block or tie on the chain line |
8.To avoid accidents,
working or passing under a lifting load is strictly forbidden
|
| 4.Don't pull up too high
or too low |
9.In case of the hand
chain fails to move, don't pull it violently or by increasing force.
Stop operation and proceed inspection of the chain block |
| 5.Don't get the load
dragged of the crossing |
10.No wild throwing or
rough handling the block |
| ĄĄ
Item Included:
|
Item* |
Description |
QTY |
Unit |
Note |
|
211034 |
Chain Block |
1 |
set |
2T 6M |
|
| ĄĄ |
