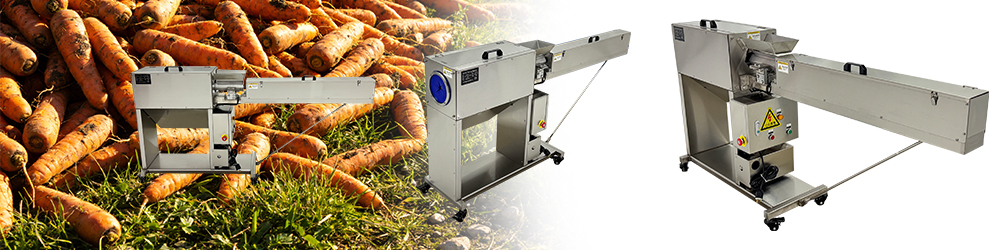

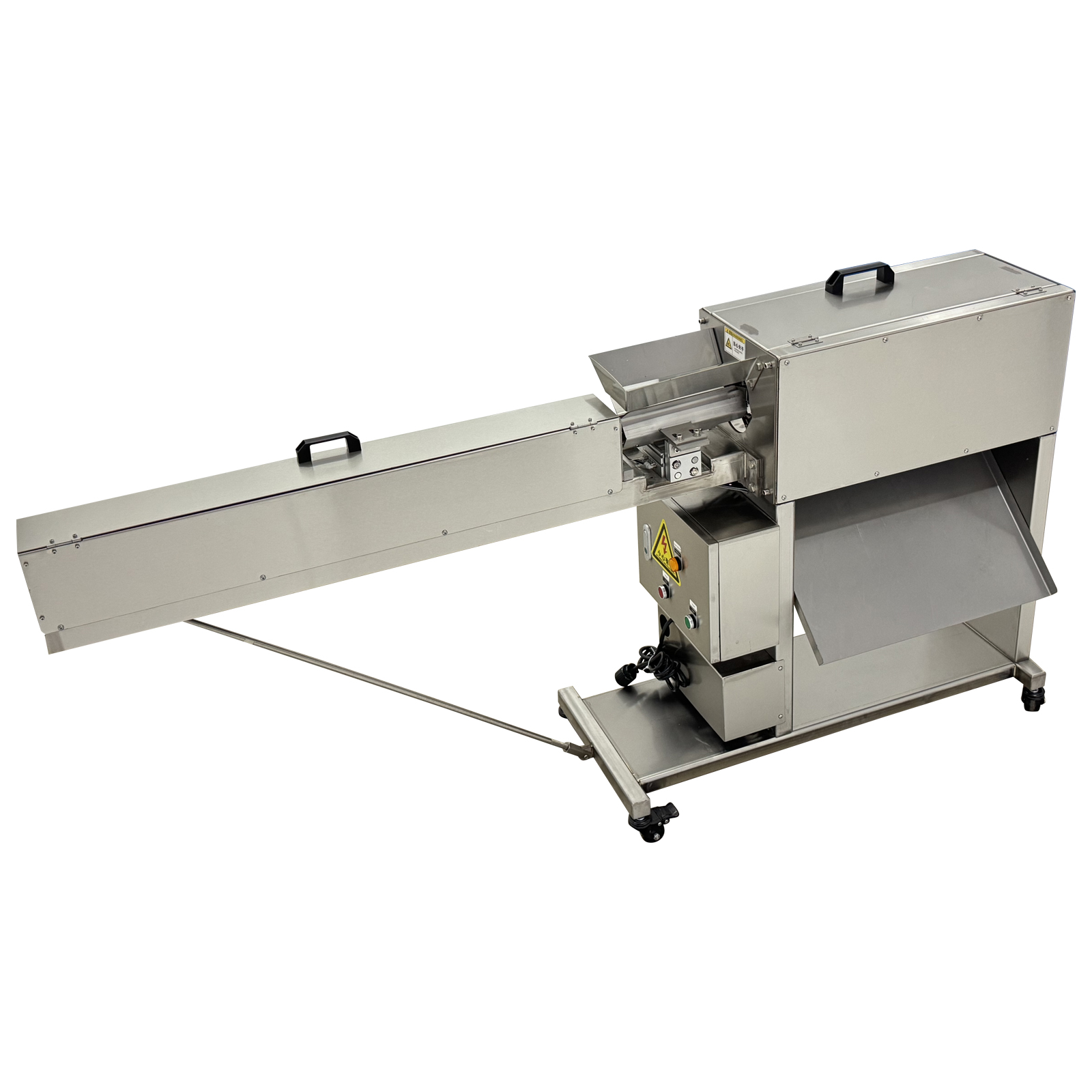

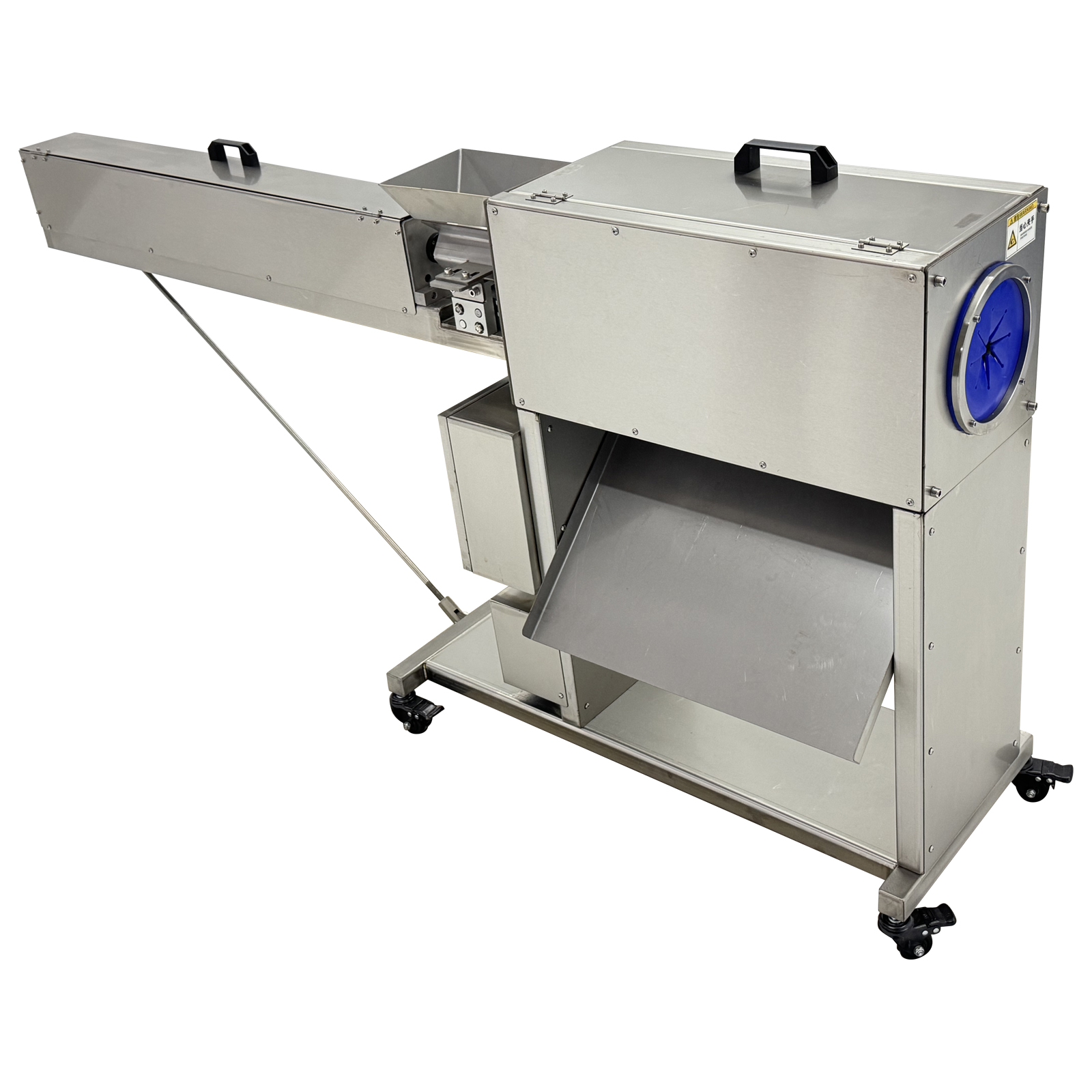

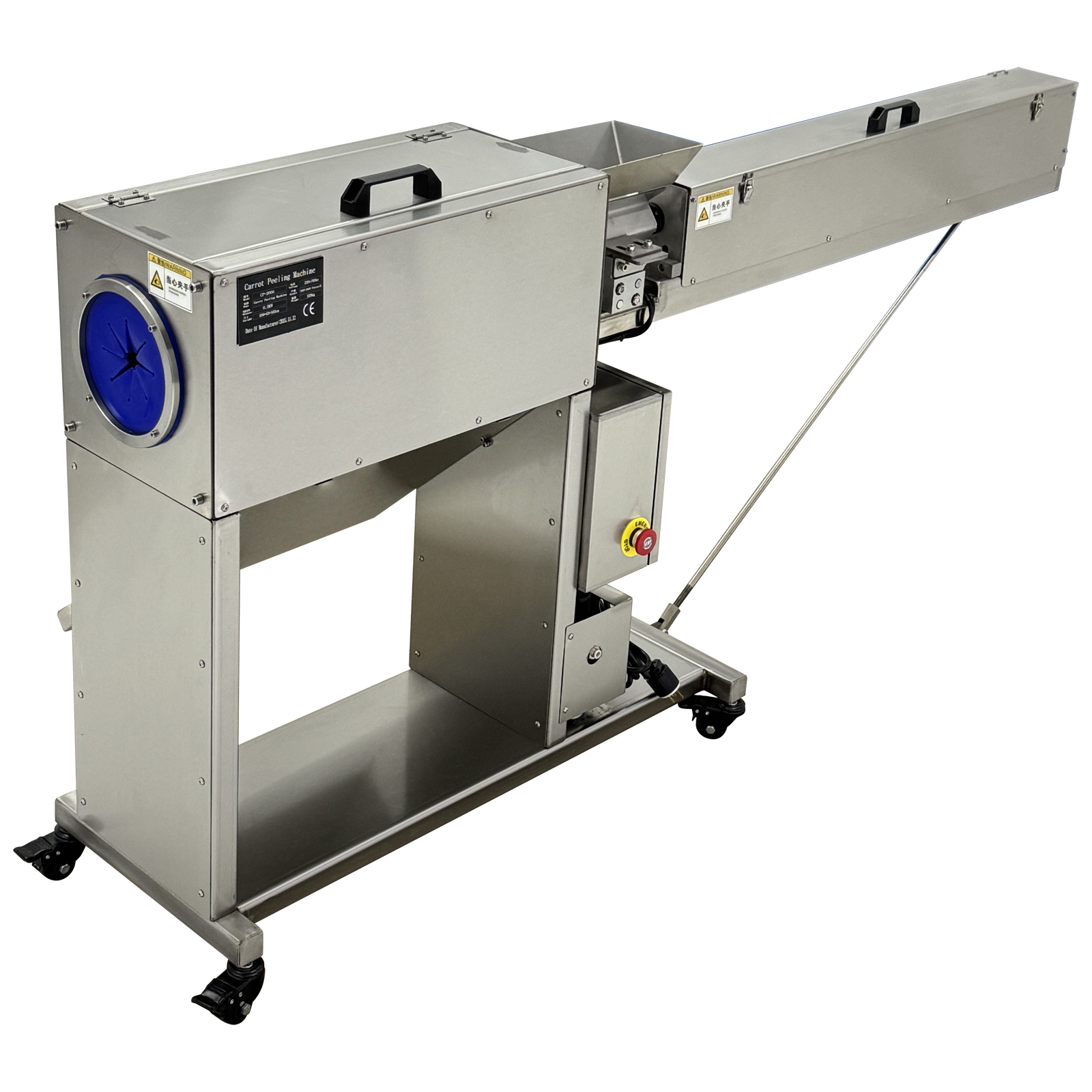

Commercial Automatic Carrot Peeler Stainless Steel Electric Peeling
Machine 220V 1PH |
|
|
|
|
|
|
 |
|
Product
Overview |
|
The automatic carrot peeler is an efficient
peeling machine specifically designed for preprocessing carrots
instead of manual peeling operation. It can peel the carrots
efficiently and quickly, is free of damage to the carrots and
has the advantages of simple operation, good peeling effect,
high peeling rate and easy cleaning. The carrot peeling machine
is suitable for the food industry and the catering industry, and
can be widely applied to canteens, central kitchens, hotels,
restaurants, food processing plants, etc. |
|
|
Product
Parameters |
|
Model |
CP-2000 |
|
Voltage |
220V 60Hz Single-phase |
|
Power |
0.2KW |
|
Yield |
1800-2000pcs/h |
|
Diameter of carrot |
3-9cm (1.2-3.5 inches)
Ideal diameter: 5-7cm (2-2.7 inches)
(For special specifications, support
customization according to the materials.) |
|
Material |
304 Stainless steel |
|
Gift |
A set of blades |
|

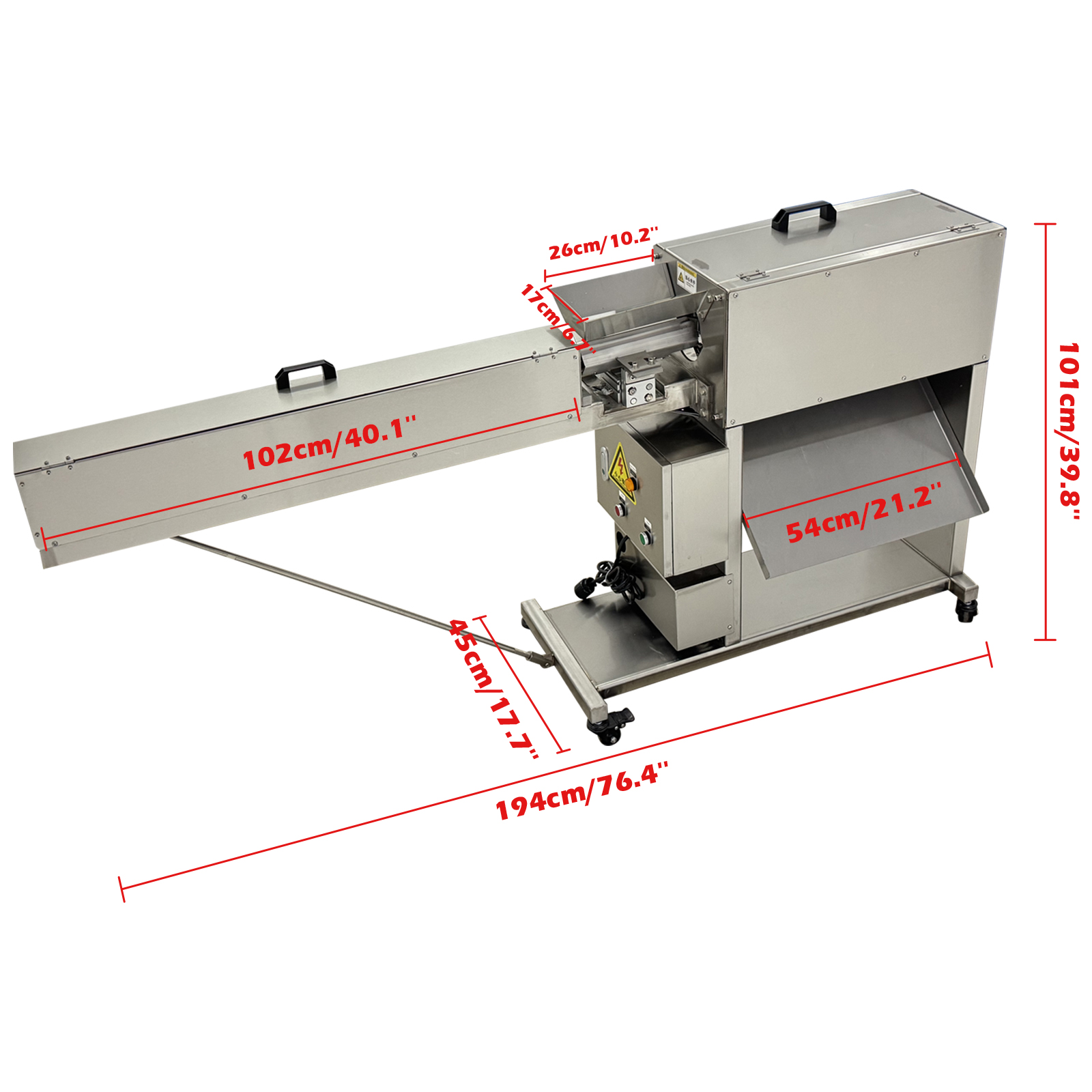

Machine size |
194*45*101cm (76.4*17.7*39.8 inches) |
|
Net weight |
98kg (216Lbs) |
|
Special Note: The machine only
can process carrots. If processing white turnips and other
radishes in different shapes and sizes, please feel free to contact us for
customization. |
|
 |
|
Attention |
|
1. Do not touch the running parts during
operation.
Do not put the hands into the
machine.
Do not allow people or objects
to be located next to the running parts of the machine.
2. Only carrots can be processed by the
machine. We also offer
customization services for other models.
3. The blades are sharp. Be careful when
replacing the blades.
4. Customers should
prepare the air compressor by themselves in advance.
|
|
|
Product
Features |
|
1. Good peeling Effect: The peeled carrot has a
smooth surface, is free of damage and can be stored for a longer
time.
2. Simple operation: The machine can be easily
operated by a single worker, and can be started and stopped
through control buttons, and the worker only needs to feed the
carrots.
3. High peeling rate: The carrots can be peeled
with 8 cutter groups in 8 different directions, and the peeling
rate can be almost 100%. Peeling is quick, perfect and
efficient, and the yield can be 1800 pieces per hour.
4. Excellent structural performance: The machine
is made of 304 stainless steel materials, achieving high
structural strength, rust and corrosion resistance, easy
cleaning and maintenance and long service life. |
|
|
|
|
Control Box
The machine is equipped with an independent
control system, operation is easy and convenient, and time and
labor are saved. |
|
Emergency Stop Switch
The emergency stop switch can be pressed to stop
the machine immediately in case of emergency, and the safety is
well guaranteed.
|
|
Feeding Inlet
The feeding inlet can achieve smooth feeding of
carrots in different sizes and can be matched with the
production line to achieve automatic feeding.
|
|
|
|
|
Peeling Cutter Groups
The machine is equipped with 8 peeling cutter
groups with 32 blades, achieving 360˚ peeling and ensuring the
good peeling effect and high peeling rate. |
|

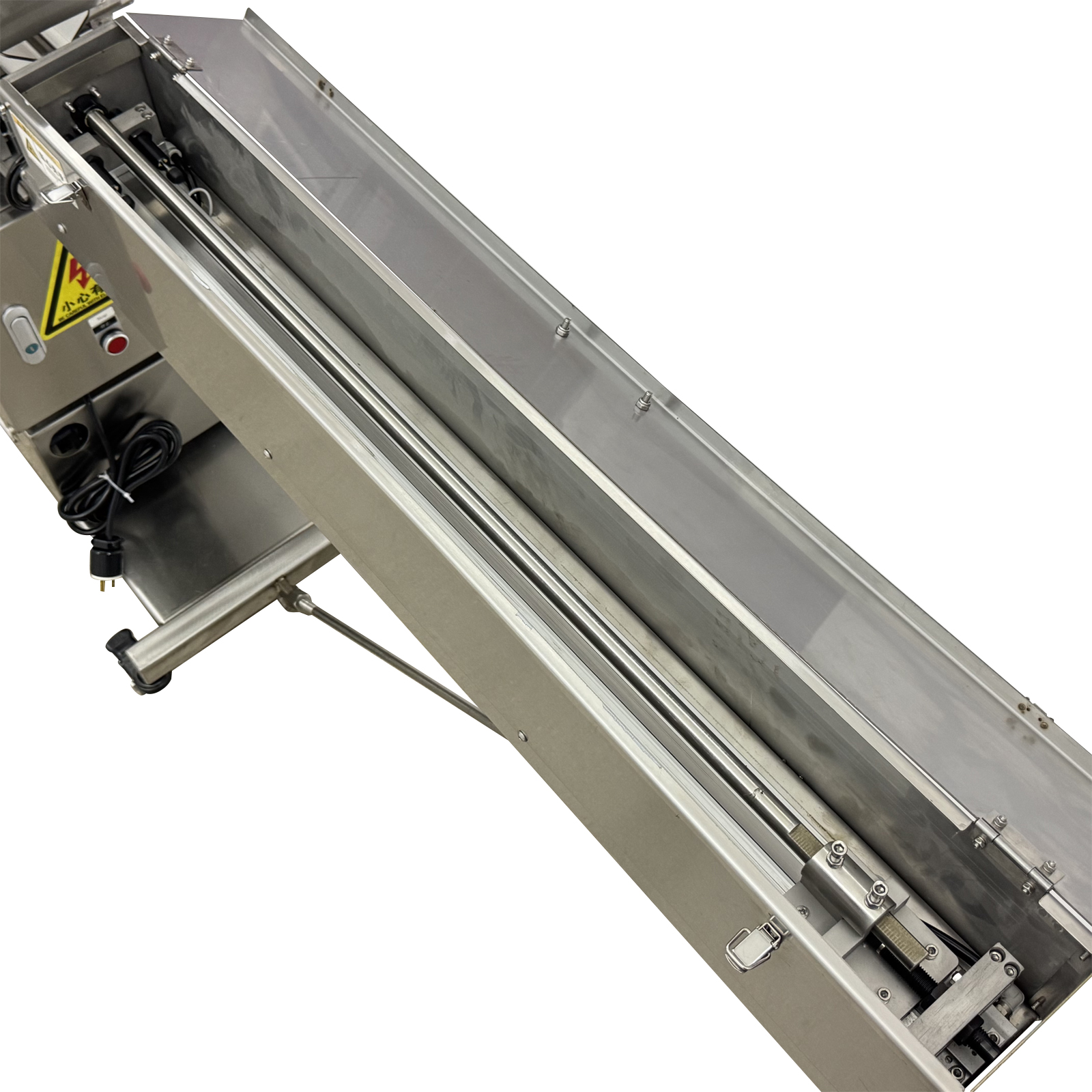

Pneumatic Assembly
The stainless steel column can easily push the
carrot to be peeled, effectively saving time and labor and
greatly improving the peeling efficiency.
|
|
Carrot Outlet
The peeled carrots can be smoothly discharged
from the machine, the outlet can well adapt to carrots in
different sizes, and the practicability is higher.
|
|
|
|
|

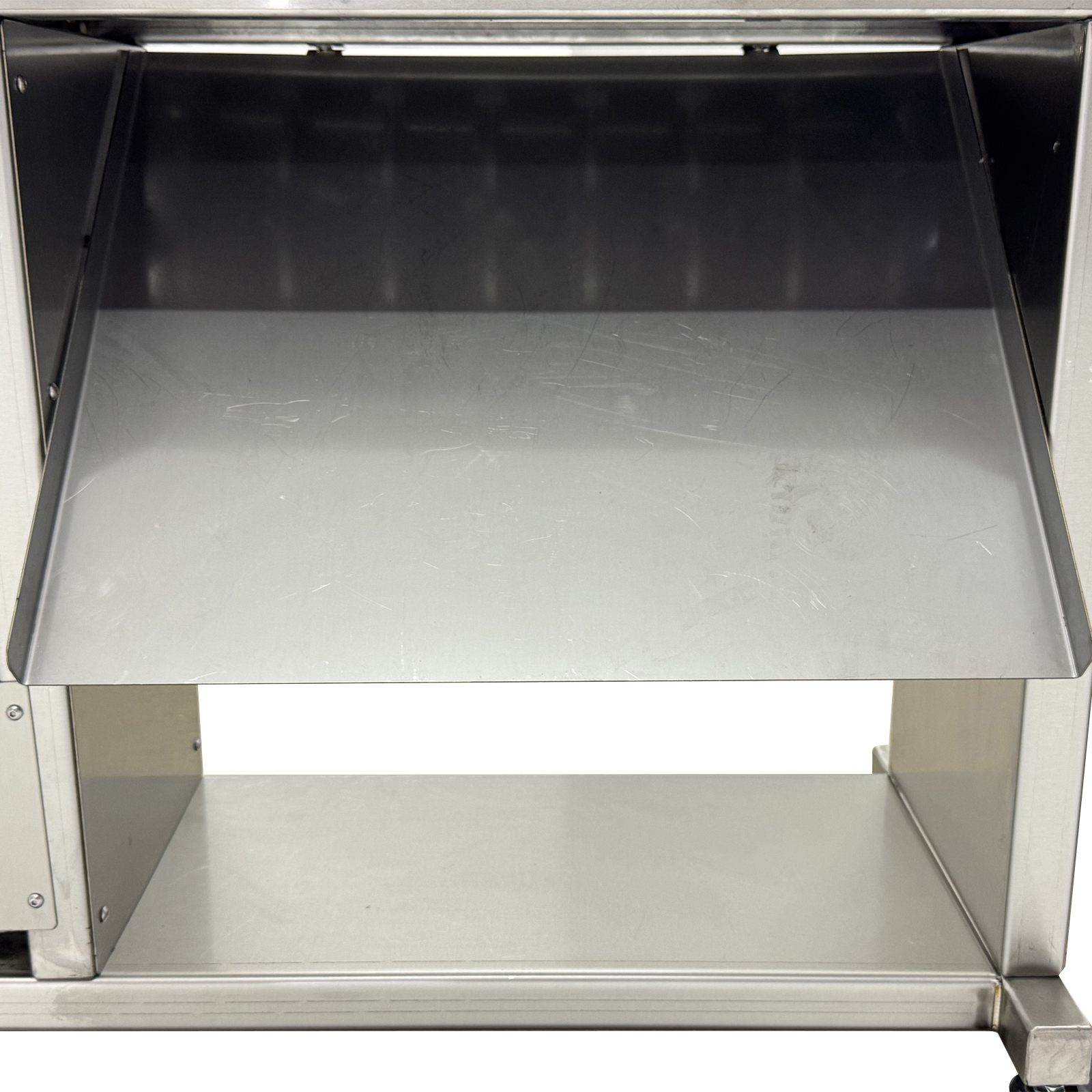

Peel Outlet
The carrot peels are discharged from the special
outlet, the peels and the peeled carrots are discharged
independently, and collection is convenient. |
|

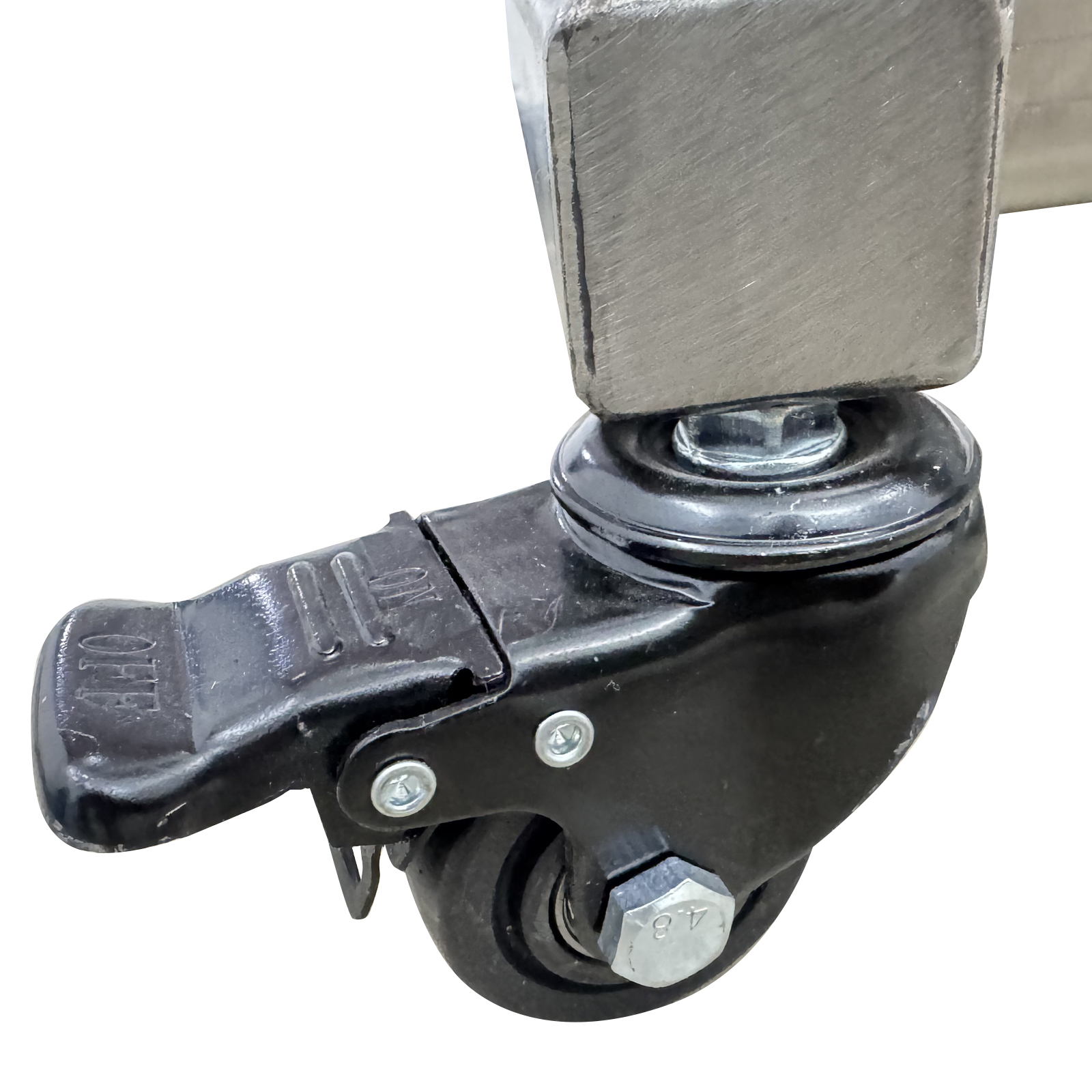

Universal Wheels
The universal wheels can rotate in the 360˚
range and allow the machine to move freely, and the brakes are
designed for stably fixing the machine.
|
|
Accessories
An air gun, a long tube and a set of blades are
additionally provided for customers, and machine cleaning and
blade replacement can be easily achieved. |
|
|
Operation
Method |
|
1. Install the machine on the flat ground
and keep it balanced.
2. Tighten the connecting bolts at all
locations.
3. Check the tightness of the
transmission cylinder and make appropriate adjustments.
4. Clean the inside and outside of the
machine. The lubricating grease has been added to each
bearing. If needed later, it can be added.
5. Connect the power supply and adjust
the pressure to meet the requirement of 0.6-0.8mpa.
6. After the normal operation of the
empty machine, conduct the formal slow feeding work.
7. After use, timely clean the machine
and parts to ensure the cleanliness. |
|
|
|
Product
Display |
 |
 |
 |
 |
|
Item Number (057136): 1 x Automatic Carrot
Peeling Machine 220V |
|
|
