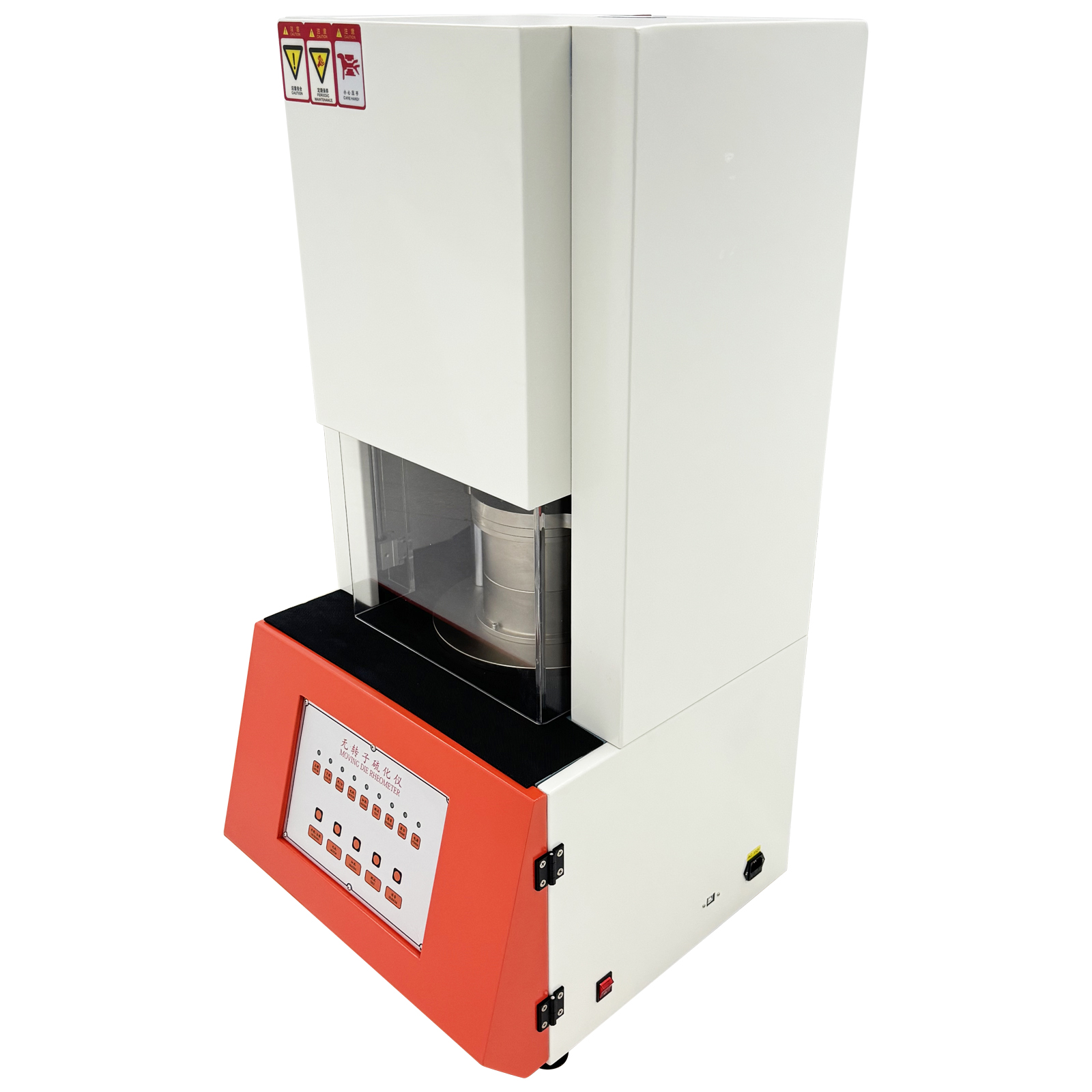

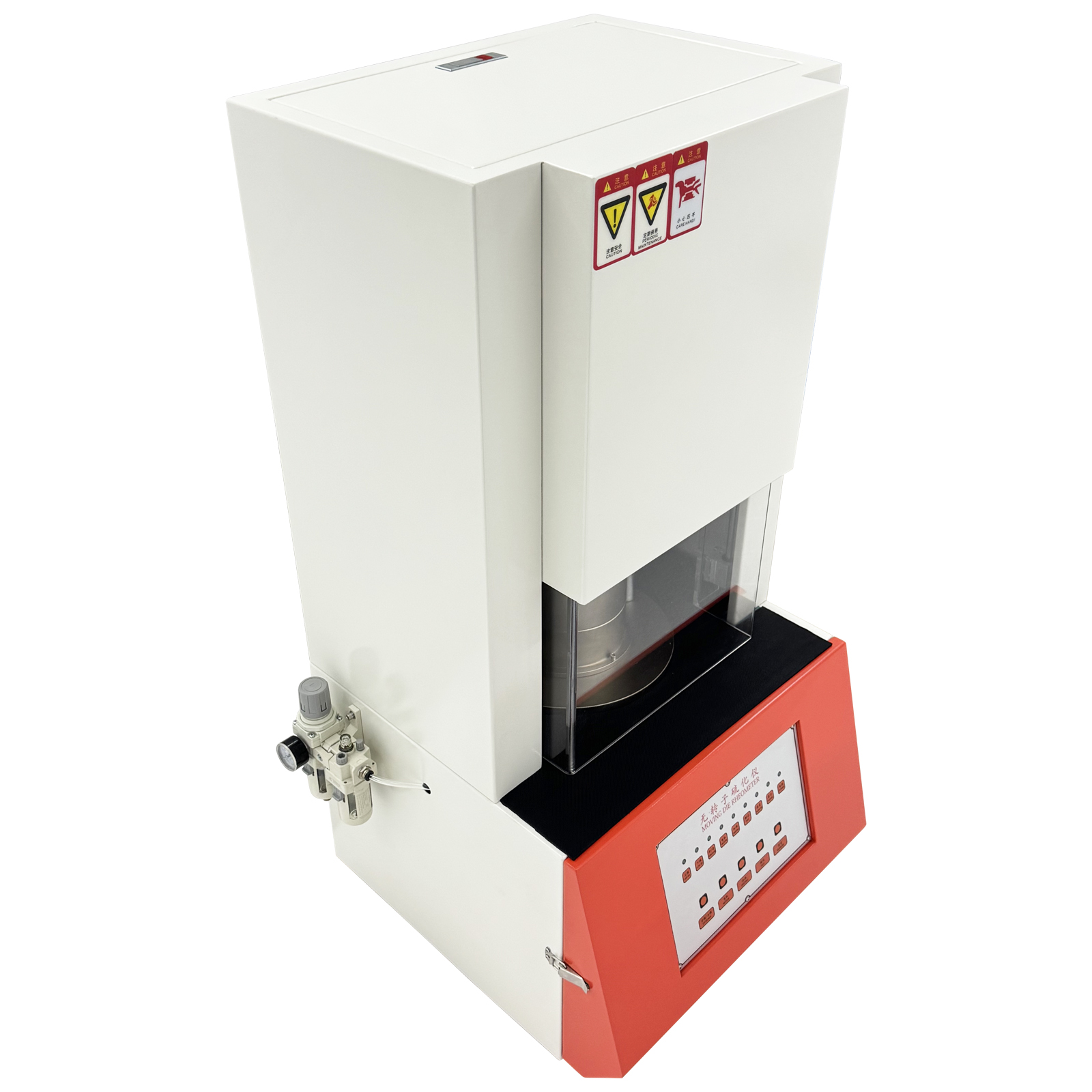

Moving Die Rheometer (MDR) 110V -
Automatic Rotorless Rubber Curemeter ASTM D5289 |
| The moving die rheometer is
widely used in the rubber processing industry for controlling
the compound quality, conducting rapid inspections and
supporting fundamental rubber research and application. It
provides precise data for optimizing rubber formula ombinations,
and can accurately measure the parameters such as the scorch
time, optimum cure time, cure index, and maximum/minimum torque.
The moving die rheometer is an optimal choice for laboratories
in the fields of rubber research and development, quality
control and technology optimization. |
|
Power Supply |
110V 60Hz |
|
Compressed Air |
0.5MPa |
|
Test Method |
Alpha test method |
|
Temperature Measurement Range |
Room temperature-200˚C (392˚F) |
|
Temperature Control and Measurement Accuracy |
≤±0.3˚C
(32.5˚F) |
|
Temperature Resolution |
0.1˚C (32.2˚F) |
|
Torque Measuring Range |
0-10N·m |
|
Torque Resolution |
0.01N·m |
|
Die Cavity Frequency |
1.7Hz |
|
Oscillation Amplitude |
±0.5˚/±1˚ |
|
Working Environment |
Ambient temperature: 0-35˚C (32-95˚F)
Relative humidity: <80% |
|
Time Setting Range |
2-300min |
|
t90 range |
10+ seconds to 5 hours |
|

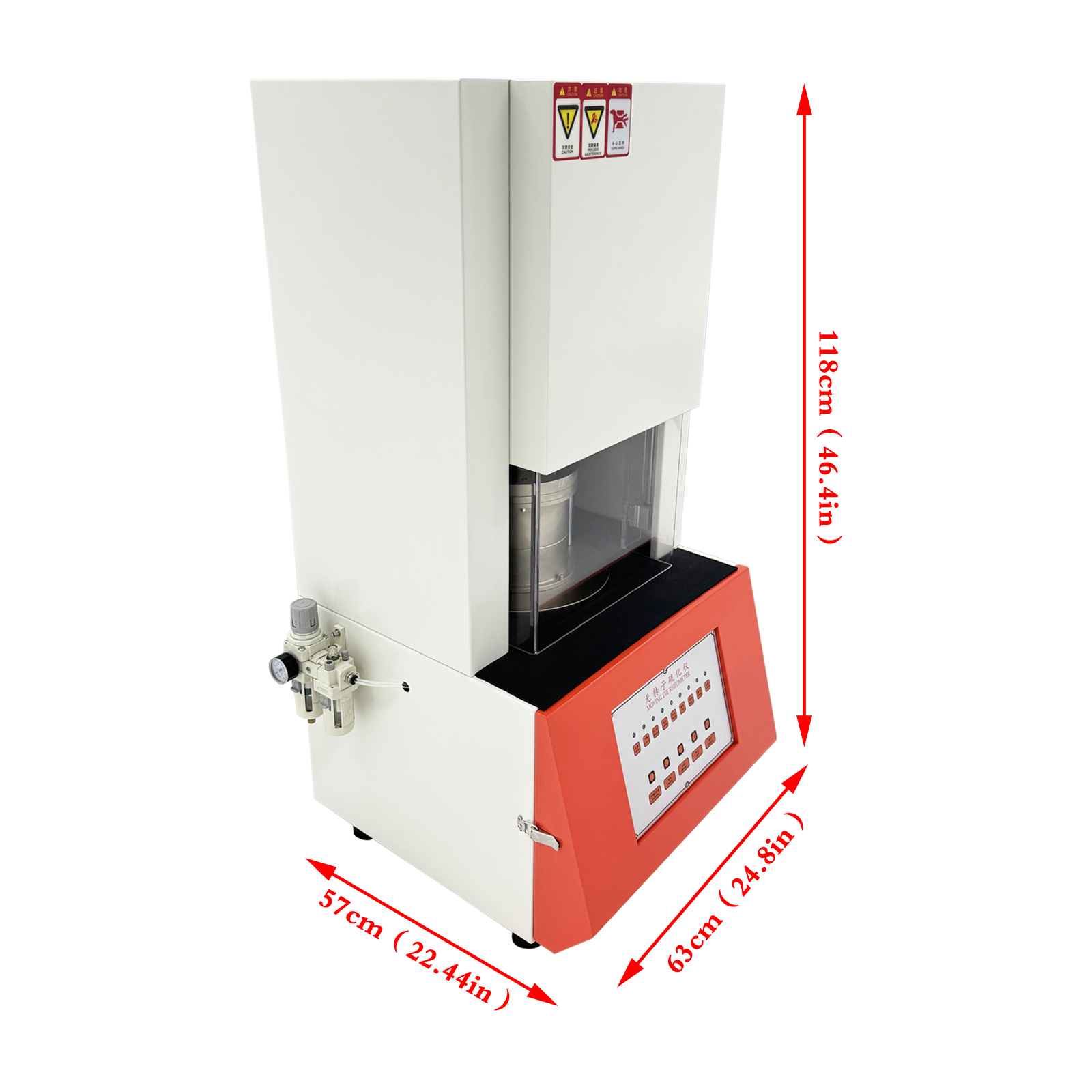

Packing dimension |
31.5*29.9*57.5 inches (80*76*146cm) |
|
Net weight / Gross weight |
432.1LBs (196kg) / 515.9LBs (234kg) |
| 1. Ensure the power supply
conforms to the parameter requirements of the machine, and
reliable grounding is achieved.
2. Keep the compressed air clean,
dry and stable at the pressure of 0.5MPa. Over-pressure air
supply is strictly prohibited.
3. Do not touch the
high-temperature die cavity and heating elements during
operation. Do not put hands into the machine during operation.
4. Do not put metal foreign
matter or hard impurities into the die cavity.
5. Wear heat-resistant
protective gloves during operation.
6. Set parameters in strict
accordance with the test standard. Do not alter the parameters
at will.
7. After each test, clean the
die cavity thoroughly with special cleaning tools. Do not scrape
the sealing surface of the die cavity.
8.
Outrange/over-temperature/over-pressure operation is strictly
prohibited. 9. There
is no air compressor included in the packing list. Customers
should use their own air compressors. |
|
1. Adopting the Alpha Test Method,
ensuring accurate test data and excellent repeatability.
2. High-precision temperature
control with stable and reliable performance, guaranteeing
authentic and accurate vulcanization curves.
3. High torque resolution,
capable of sensitively capturing subtle changes in the entire
rubber vulcanization process.
4. Standard oscillation frequency
and amplitude of the die cavity, fully compliant with
international standards such as ASTM.
5. Designed for 110V 60Hz power
supply, no transformer required, ideal for different
laboratories.
6. Fully automatic operation with
simple operation; automatically generating curves and key
parameters such as t90 upon test completion.
7. Compact size with small
occupied space, suitable for small laboratories and R&D
institutions.
8. Stable operation, easy
maintenance, long service life and high cost performance. |
 |
|
 |
|

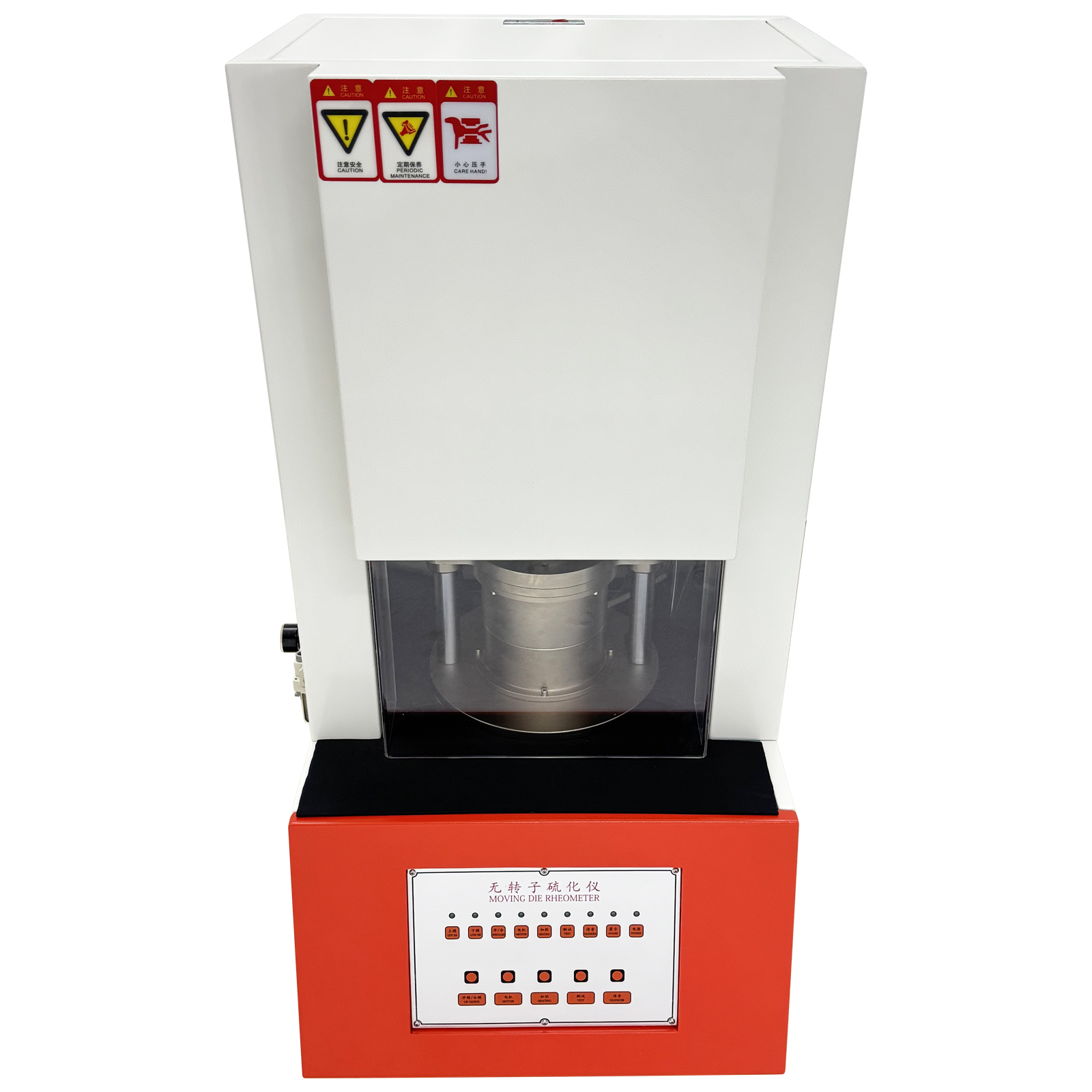

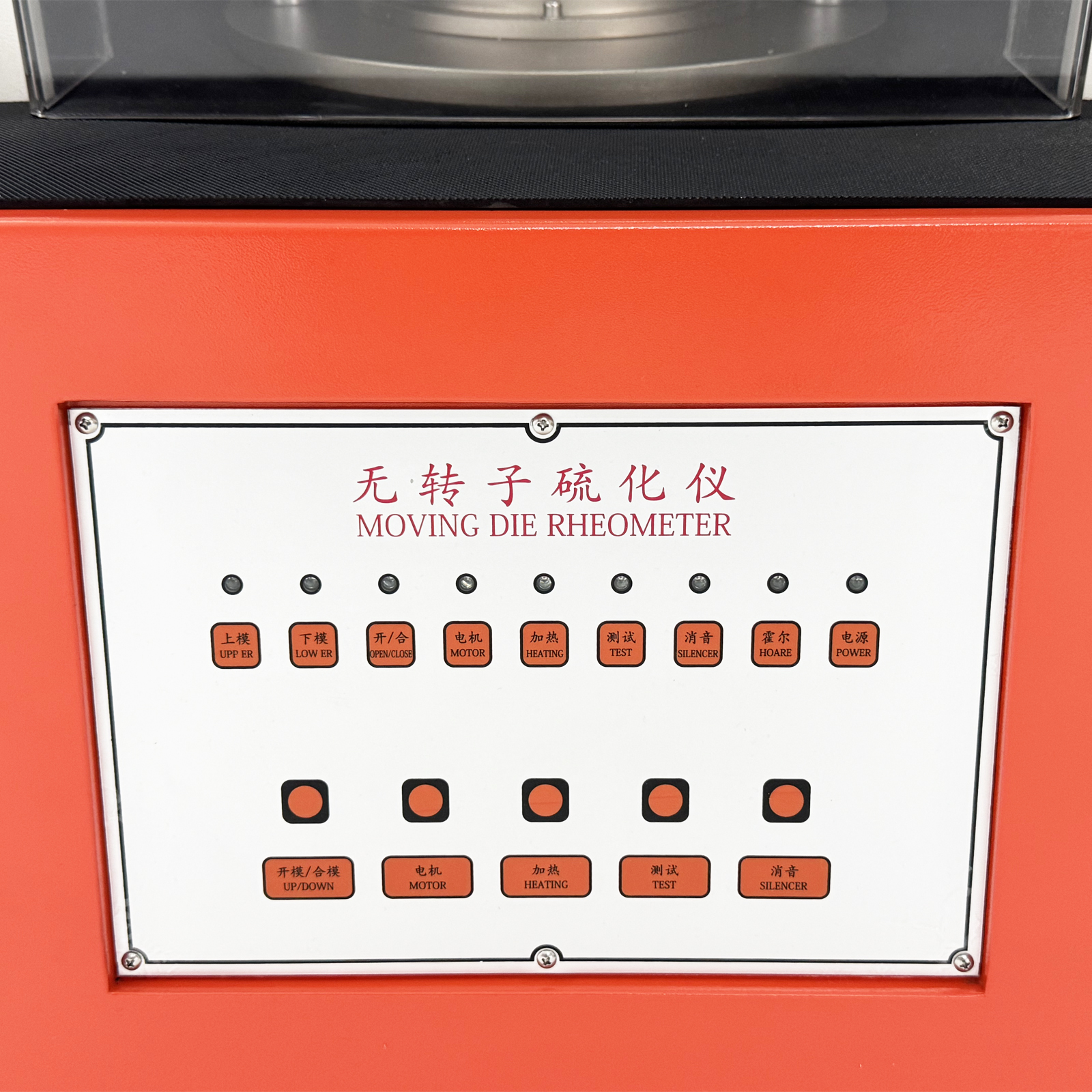

Control Panel
The control panel integrates multiple control buttons and state
indicators, ensuring precision control over the testing
procedures and real-time monitoring of the running state, and
improving the test reliability and operation safety.
|
|

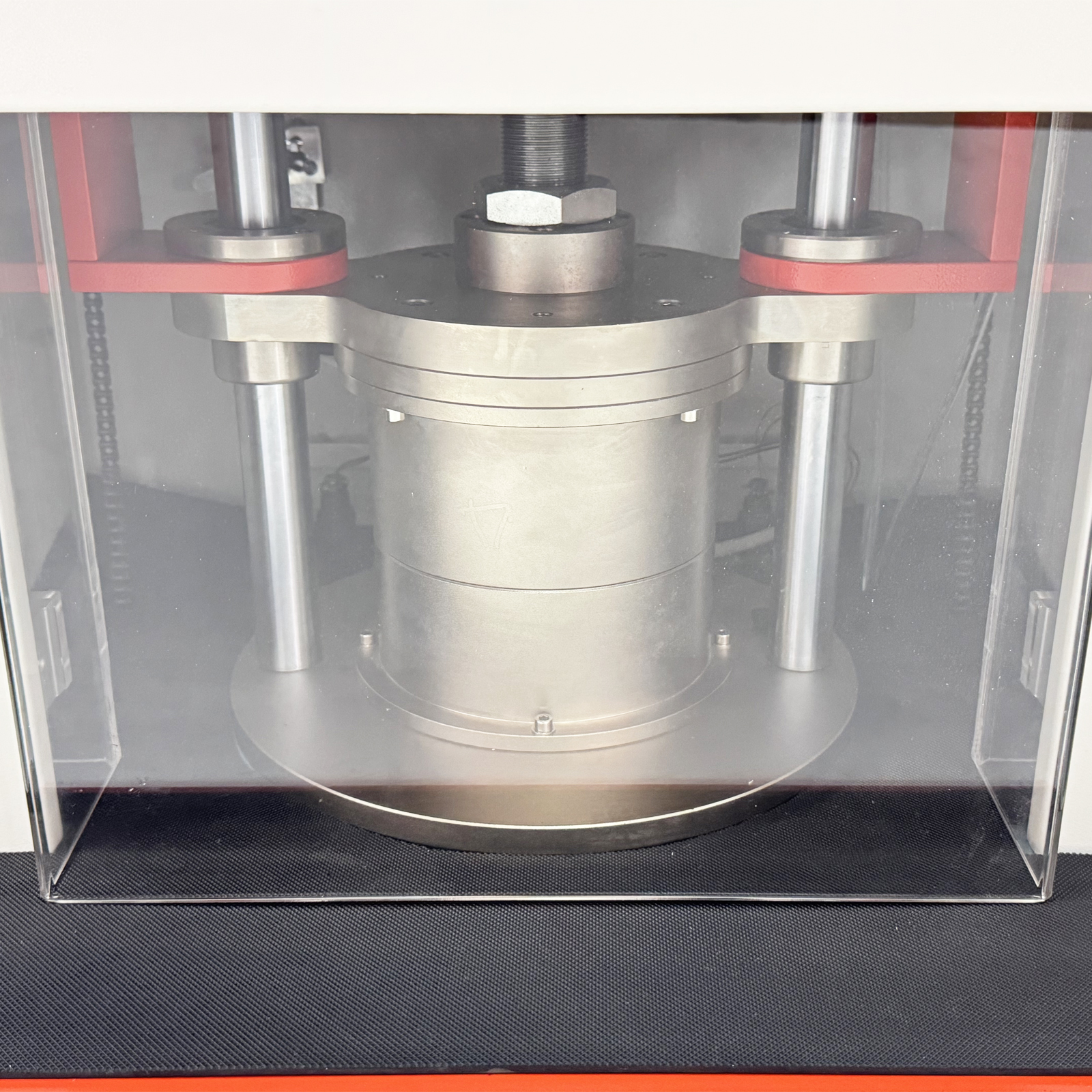

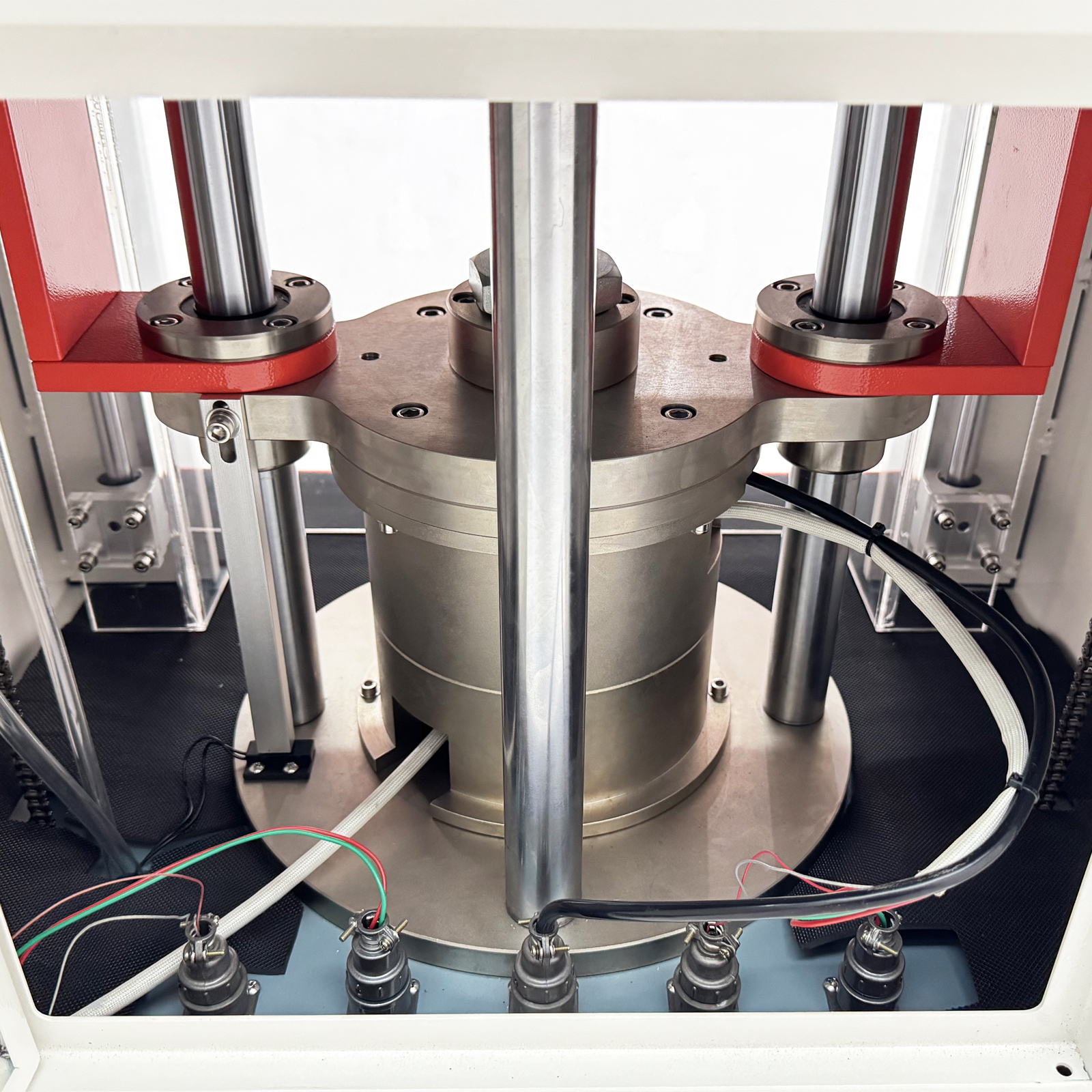

Precision Die
The die cavity is forged and crafted
with high-strength alloy, ensuring the excellent sealing
performance and temperature consistency, and improving the
testing stability and precision. The die is firm, durable and
easy to clean.
|
 |
|
 |
|
Protective Cover
The transparent protective cover can
completely isolate operators from the high-temperature die
cavity, effectively avoiding burns and other risks. It can also
resist the harmful gas and keep the environment clean and safe.
|
|

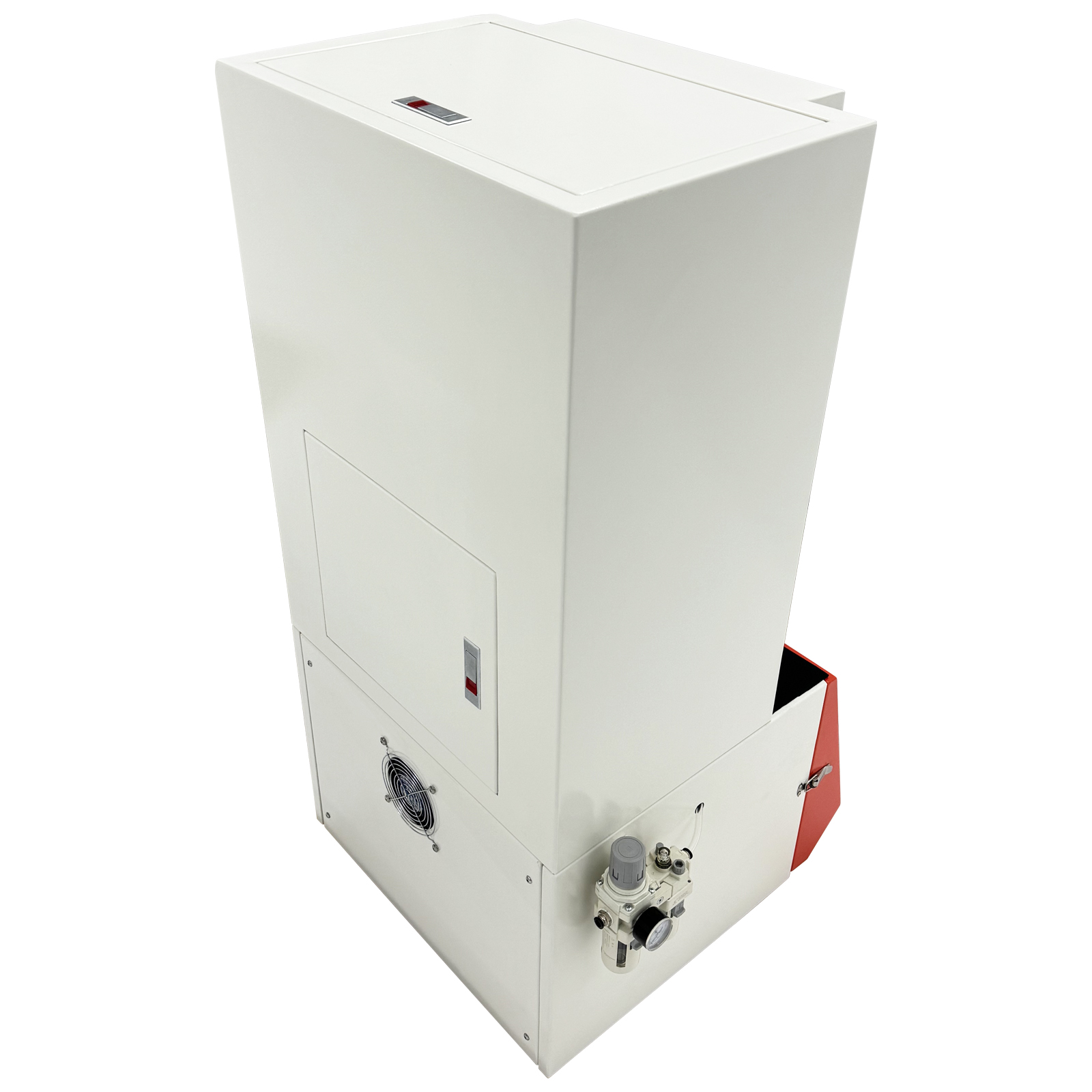

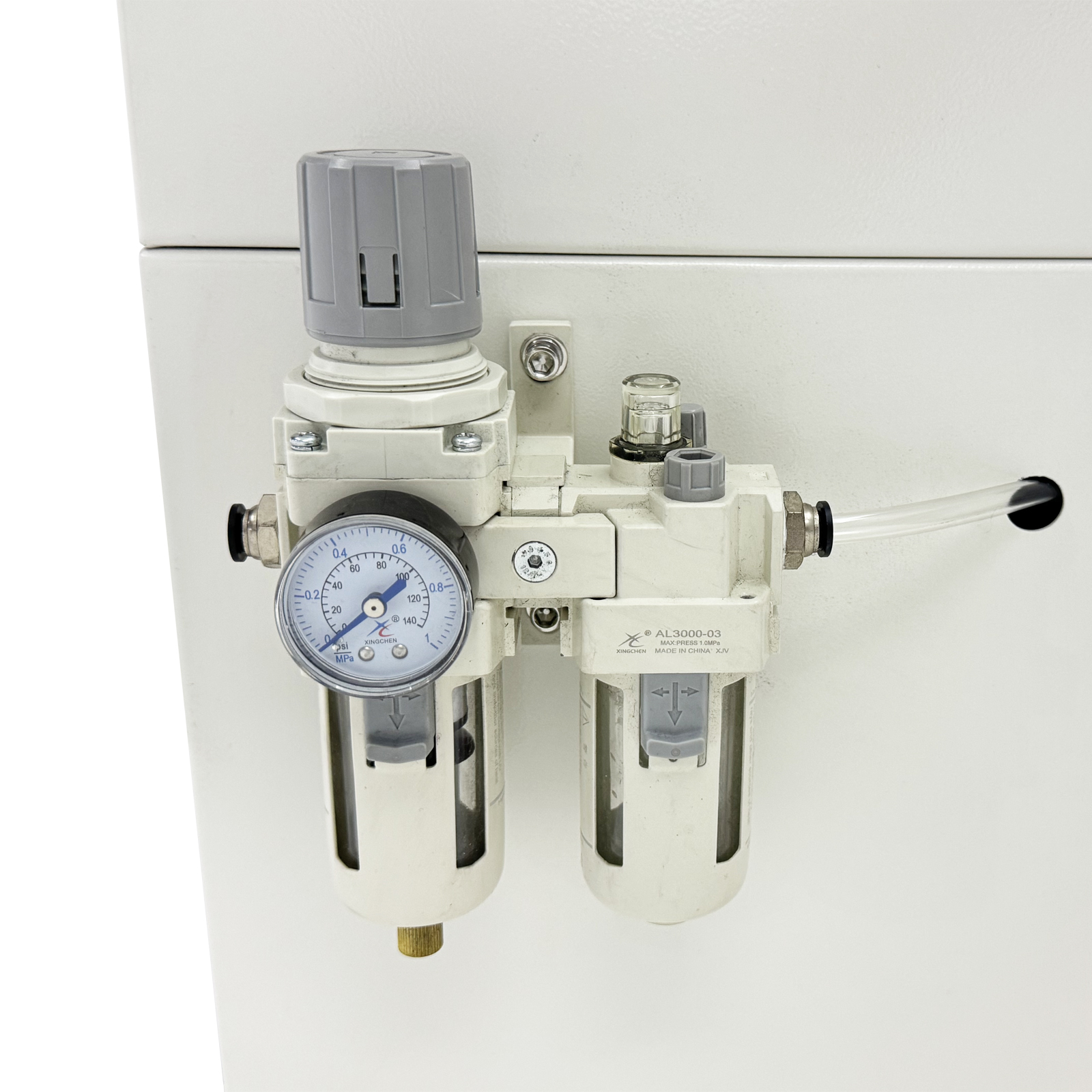

Air Source Treatment Unit
The high-precision pressure
regulating valve and pressure gauge are integrated to achieve
accurate pressure control and ensure the stability of die
closing force. The impurities in the compressed air can be
effectively filtered away.
|
 |
|
 |
|

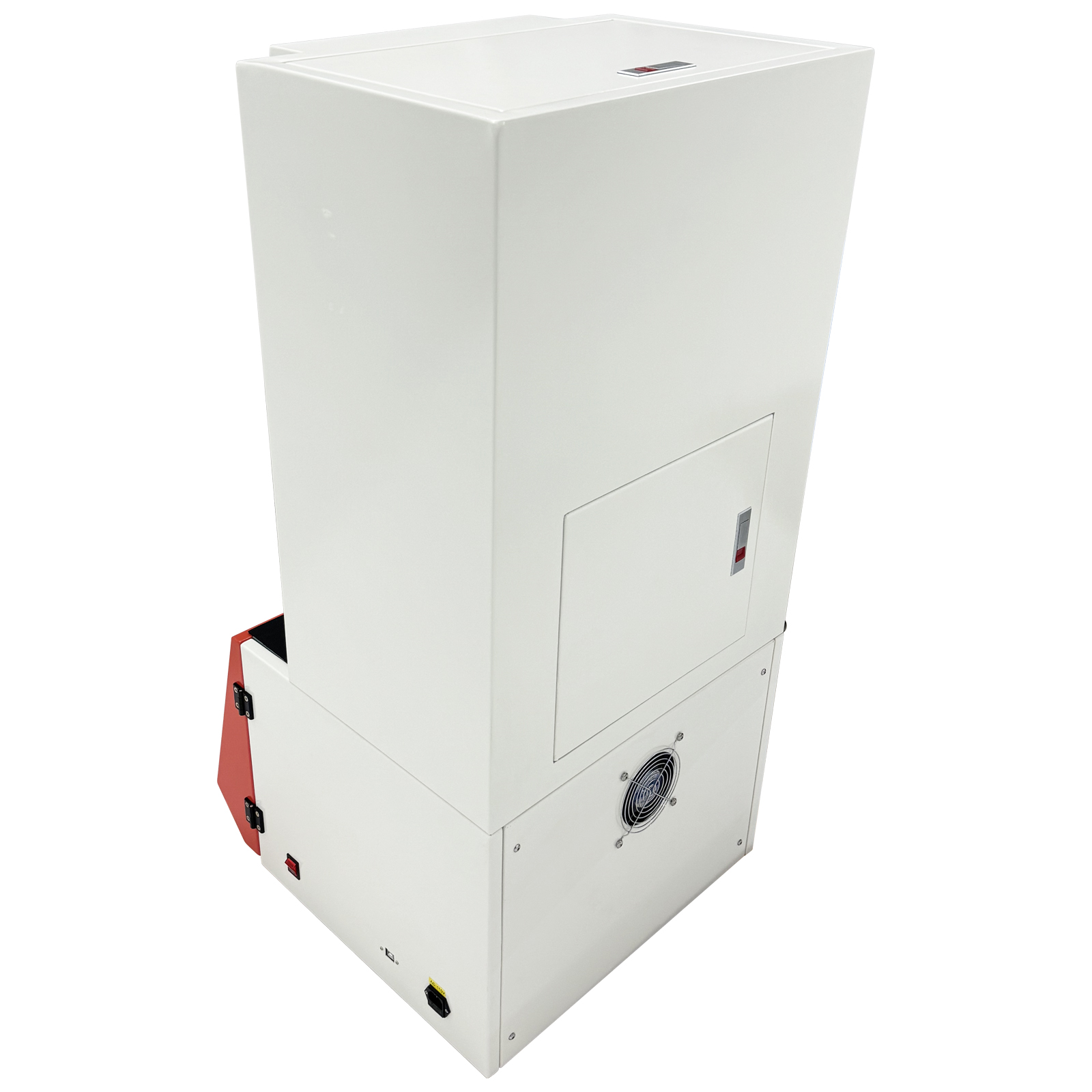

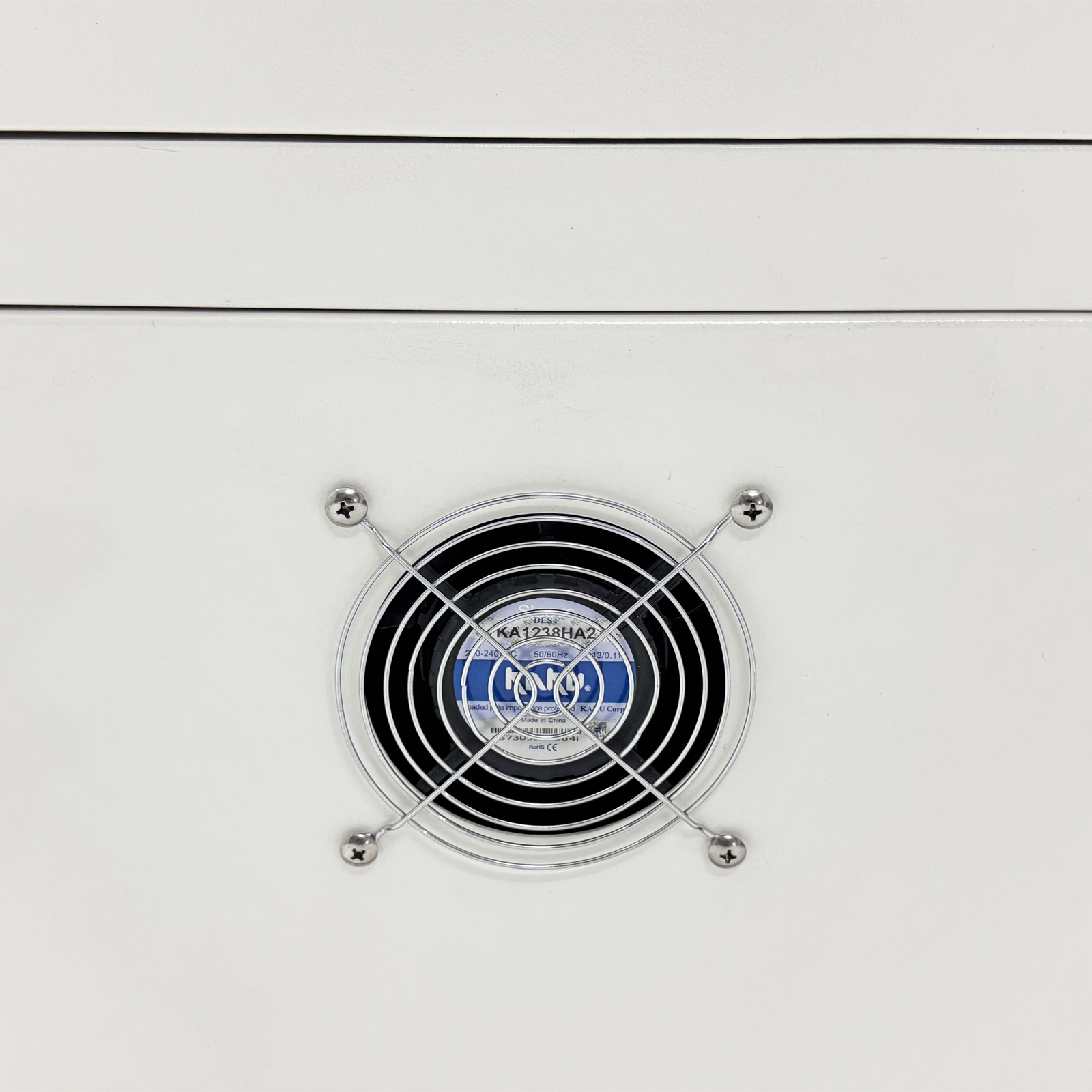

Heat Dissipation System
The
cooling fan is adopted to quickly dissipate the heat generated
by internal parts, improving the performance stability during
continuous long-term testing. The metal protective net is firm
and durable and has high safety protection.
|
|

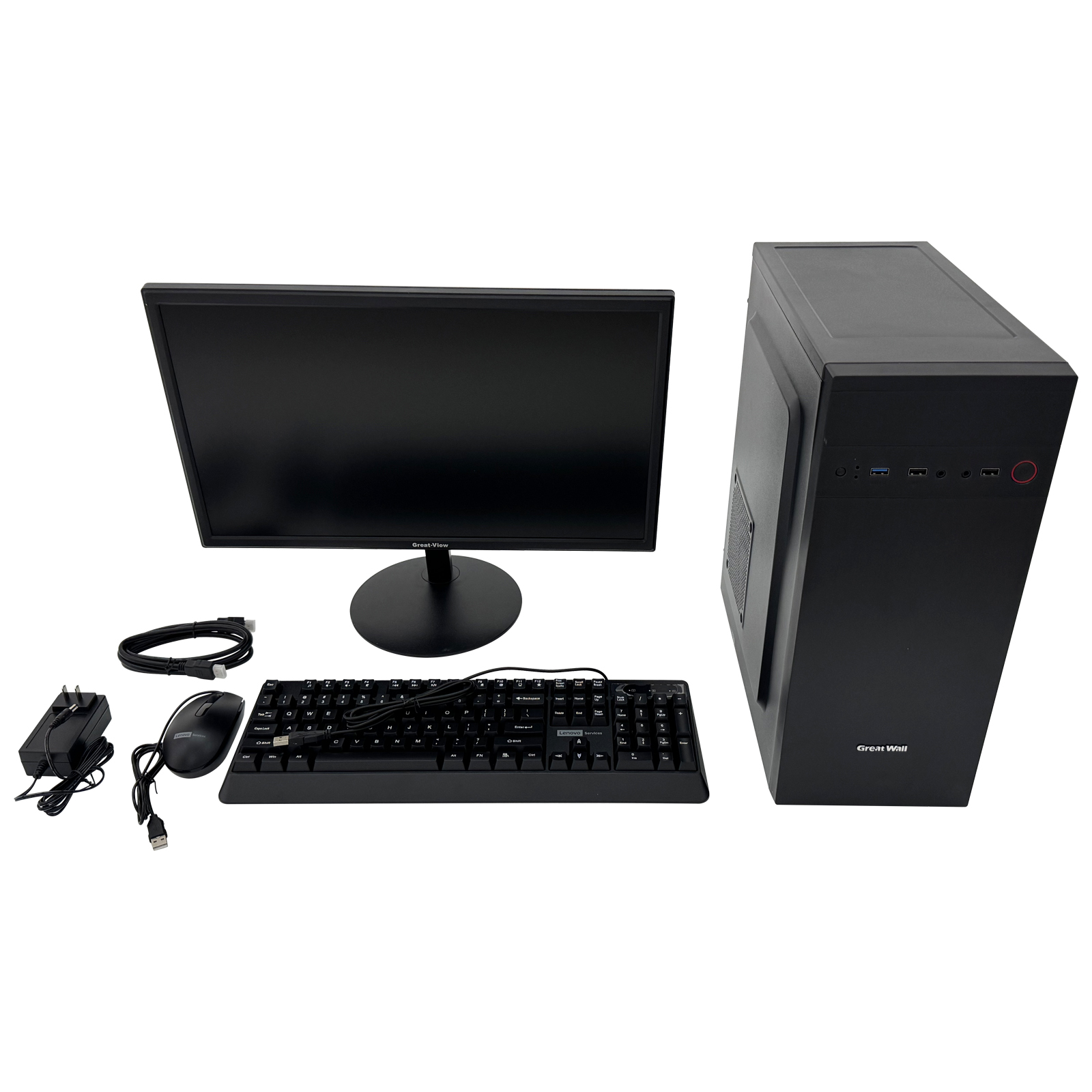

Computer Control System
The
computer control system has powerful performance, can operate
the test software stably and is suitable for continuous testing
in laboratories. It supports flexible setting and storage of
test parameters and results and has good compatibility and
reliability.
|
| 1.
Connect the machine to the air supply and 110V power supply with
reliable grounding. 2.
Connect the host computer, monitor, printer and other
accessories to the machine.
3. Turn on the power switch,
start the computer, run the test software and set the related
parameters as needed.
4. Press the open/close button to
close the die cavity.
5. Press the heating button to
heat the die until the temperature reaches the set value.
6. After reaching the set
temperature, press the open/close button to open the die cavity.
7. Put the to-be-tested material
into the die cavity, close the die cavity and start testing.
8. After testing, open the die
cavity and take out the tested material timely. |
|
|
 |
 |
 |
 |
|
Item Included (057351):
1 x Moving Die Rheometer 110V |
|
You can
make order with no worry.
Any concern just feel free to let us know, we'll reply in 24
hours in normal condition.
Handling Time: Shipping is usually made in 1-3 business days
after payments cleared. Orders are processed from Monday-Friday;
Not on the weekends & public holidays.
Warranty: 6 months' warranty for the machines, not for the
consumables.
We stand behind our products all the item, so even if your
warranty period has expired, you can still seek for service or
technical support from us with low cost. |
|
